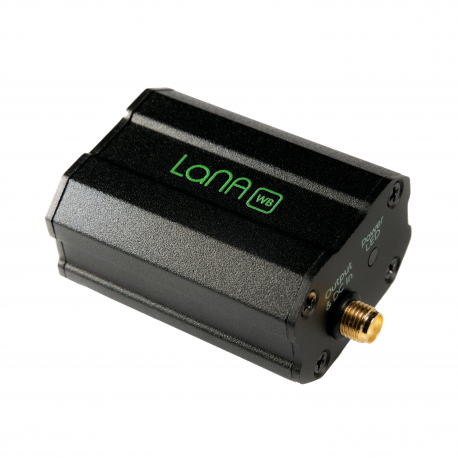

Nooelec LaNA WB - Ultra-Low Noise Amplifier (LNA) Module for RF & Software Defined Radio (SDR) with Enclosure & Accessories. Wideband 300MHz-8000MHz Frequency Capability w/ BiasTee & USB Power Options

Be the first to review this product

A high-quality amplifier (LNA) module that operates on a very wide range of frequencies: from 300MHz to 8GHz. Provides a boost to weak signals, extending the reception range and improving overall signal strength

Engineered to deliver exceptional performance at S and C frequency bands; offering significantly higher gain, a lower noise figure, reduced power consumption, and improved linearity for superior reception quality compared to competitive LNAs
SKU: 100845


Orders usually shipped in 1 business day!


Free shipping, always.
For orders over $100. Any order, anywhere.


Smile & relax.
30-day return policy on nearly everything in our store.

Share This



Experience exceptional performance and versatility with LaNA WB, a meticulously engineered, high-performance, wideband LNA module designed specifically for software defined radio applications.

The gain provided by LaNA WB is extremely linear in its operating frequency range of 300MHz to 8GHz--approximately 16-20dB from 300MHz to 6GHz, and 10-16dB from 6GHz to 8GHz. Due to careful layout and RF techniques, the noise figure is exceedingly low over the entire operating range of the device at about 1.5dB nominal. This maximizes compatibility with a large range of applications.

Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully protected from ESD overload and RF overload.

Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for BiasTee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. A maximum current requirement of 65mA ensures compatibility with nearly all BiasTee configurations.

Alternatively, if you don't have a BiasTee capable SDR, you can use the external power options--the USB-C port, or DC barrel connector via the included DC to USB-C adapter. The recommended external power input is 3.3V-5.5V DC.

Though there is protection circuitry on LaNA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended to exceed the recommended input voltage range for long-term use.

Proudly made in North America, ensuring exceptional quality and reliability, and backed by a generous 2-year warranty for peace of mind!
