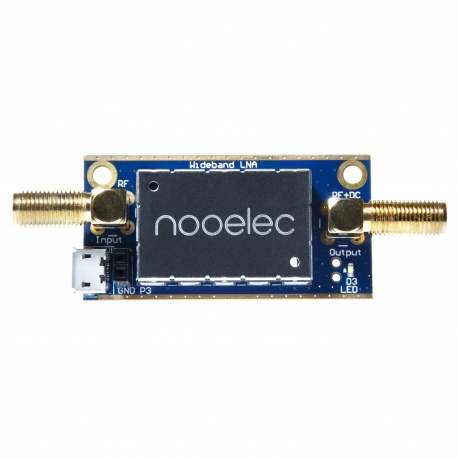

Nooelec LaNA Barebones - Wideband Ultra Low-Noise Amplifier (LNA) Module. 20MHz-4GHz Capability w/ Bias-Tee, USB & DC Power Options

Be the first to review this product

A wideband, high-performance, general purpose LNA module at a great price. Higher gain, lower noise figure, lower power consumption and better linearity than modules based on SPF5189Z and similar LNA MMICs.

Can be powered through bias tee (3.3V-5V), USB, or DC power. Made in North America with 2 year warranty!

SKU: 100802
US$19.95
US$19.95
star

Orders usually shipped in 1 business day!
Read more...

star

Free shipping, always.
For orders over $50. Any order, anywhere.

star

Smile & relax.
30-day return policy on nearly everything in our store.

Share This



Description

Details

LaNA is a very high performance, wideband LNA module designed for general purpose SDR applications.

Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector via the included DC to microUSB adapter. The recommended external power input is 3.3V-5.5V DC.

Though there is protection circuitry on LaNA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage. Kindly note that damage resulting from overvoltage conditions would not be covered under the standard 2 year warranty.

Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.

Additional Info

Additional Info

SKU 100802
UPC 0616469146489
