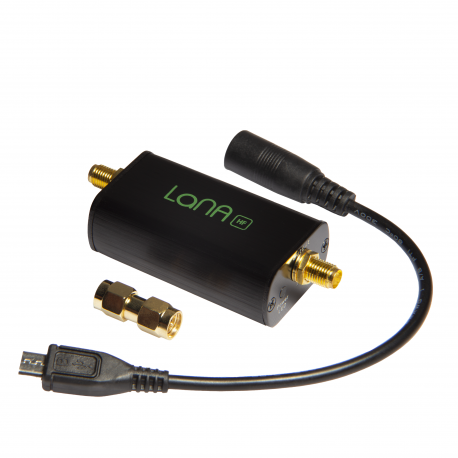

Nooelec LaNA HF - Ultra Low-Noise LF, MF & HF Amplifier (LNA) Module. 50kHz-150MHz Frequency Capability w/ Bias-Tee, USB & DC Power Options

Be the first to review this product

A wideband, high-performance, high-linearity LNA module designed specifically for HF applications

High gain, very low noise figure, and very low power consumption of <30mA

Made in North America. 2 year warranty!

SKU: 100838
US$34.95
US$34.95


star

Orders usually shipped in 1 business day!
Read more...

star

Free shipping, always.
For orders over $100. Any order, anywhere.

star

Smile & relax.
30-day return policy on nearly everything in our store.

Share This



Description

Details

LaNA HF is a very high performance, wideband and linear LNA module designed for SDR applications in the HF band and adjacent bands. Power consumption is less than 30mA.

LaNA HF greatly improves performance when used with Ham It Up upconverters, direct sampling SDRs, and most HF-capable radios and rigs!

Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee) is 4.5V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or the power input header. The recommended external power input is 4.0V-5.5V DC.

Though there is protection circuitry on LaNA HF for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage. Kindly note that damage resulting from overvoltage conditions would not be covered under the standard warranty.

Each LaNA HF Barbones module has an EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected. LaNA HF also has an RF limiter at the input port to protect the amplifier from very high power external signals

Additional Info

Additional Info

SKU 100838
UPC 0616469146793
