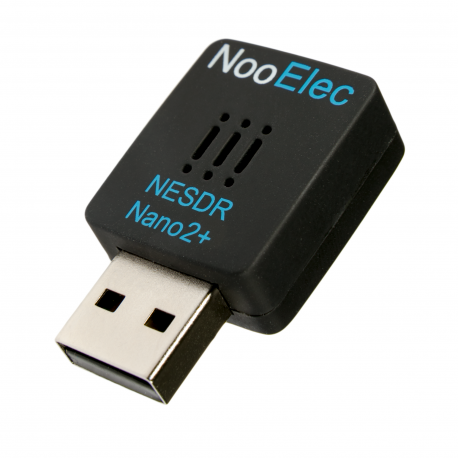

Nooelec NESDR Nano 2+: Tiny RTL-SDR USB Set w/ 0.5PPM TCXO, R820T2 Tuner & Antenna

Nooelec NESDR Nano 2+ SDR set.

Includes a new custom 0.5PPM, ultra-low phase noise TCXO. Specs below!

Re-designed for lower temperatures and rated for 24/7 operation.

SKU: 100684


Orders usually shipped in 1 business day!


Free shipping, always.
For orders over $100. Any order, anywhere.


Smile & relax.
30-day return policy on nearly everything in our store.

Share This



The NESDR Nano 2+ are custom-made by Nooelec for SDR applications, though they will still function as quality DVB-T receivers where signals permit. The enclosure was also re-designed to assist in maintaining lower temperatures than the previous generation.

The tiny size and 24/7 capability makes the Nano 2+ perfect for embedded applications! How small? Just 24mm x 21mm x 8mm (15/16" x 13/16" x 5/16")! Working on a remote installation? Building an ADS-B station? This is probably what you want!

The Nano 2+ contains a new custom TCXO fabricated exclusively for Nooelec. Important TCXO specifications:

  • Frequency stability: 0.5PPM (max)
  • Phase noise @1kHz offset: -138dBc/Hz (or better)
  • Phase noise @10kHz: -150dBc/Hz (or better)
  • Phase noise @100kHz: -152dBc/Hz (or better)

This is, by far, the highest performance TCXO available in any low-cost SDR.

As with other units in the NESDR Plus series, a full 2-year warranty is included at no extra charge. We guarantee antenna protection will be present so that your new investment will not be quickly destroyed by spurious ESD. And, as usual, we perform extensive QA on every batch sold.

The low-ESR NP0/C0G capacitors and high-Q inductors we use for production assist in lowering the noise floor, increase stability and improve longevity.

The NESDR Nano 2+ is based on the R820T2 tuner IC made by Rafael Micro, which means an approximate tuning range of 25MHz-1700MHz and improved selectivity and sensitivity in most frequency ranges versus R820T-based SDRs. There is also an RTL2832 (RTL2832U) IC on board of course, to provide basic demodulation and USB interface functionality.

Full compatibility with a wide variety of popular SDR software packages, such as Matlab, HDSDR, SDR Touch, Planeplotter, SDR#--too many to list, really. We're talking Windows, Mac, Linux, Android, Raspberry Pi...you'd be hard pressed to find somewhere you can't use these!

Additional Info

Additional Info

SKU 100684
USB Interface IC RTL2832U
Tuner IC R820T2
Frequency Range (approximate) 25MHz - 1750MHz
TCXO clock Yes
Antenna Connector Type MCX
Antenna Included? Yes
Remote Included? No
Additional Accessories Contains ultra-low phase noise, 0.5PPM TCXO.


not for Battery Apps and gets hotReview by Michael
I have tried the NESDR, it does work, but my application is battery powered and this draws about 200mA and gets VERY hot. like I burned my fingers hot.
I have an older one, the PCB is discoloured. Is this right? (Posted on 1/13/2023)
