HackRF One: Configurable HF Bundle

Be the first to review this product

Contains everything you need to listen to, and transmit, HF, VHF & UHF with the HackRF One from Great Scott Gadgets, down to 100kHz or lower!

Standard bundle includes HackRF, Ham It Up, Antenna Balun, 2 SMA interconnect cables and an SMA to BNC adapter.

Configure the rest of the bundle as required by selecting the appropriate checkboxes.

SKU: 999008

From: US$379.70

To: US$674.35

Price as configured: US$0.00

star

Orders usually shipped in 1 business day!
Read more...

star

Free shipping, always.
For orders over $100. Any order, anywhere.

star

Smile & relax.
30-day return policy on nearly everything in our store.

Share This



1 x HackRF One Software Defined Radio   +US$303.95
2 x Male SMA to Male SMA pigtail cable, RG-316, 0.5' length   +US$13.20
1 x Male SMA to Female BNC Adapter   +US$5.65

* Required Fields

Price as configured: US$0.00



Description

Details

Contains everything you need to listen to HF with HackRF One down to below 100kHz, giving you a signal range of 100kHz-6GHz+!

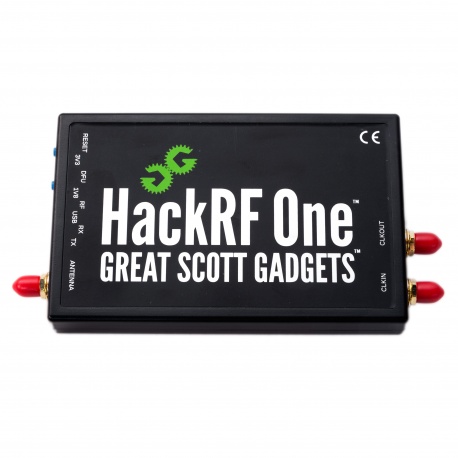

HackRF One from Great Scott Gadgets is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

  • 1 MHz to 6 GHz operating frequency
  • half-duplex transceiver
  • up to 20 million samples per second
  • 8-bit quadrature samples (8-bit I and 8-bit Q)
  • compatible with GNU Radio, SDR#, and more
  • software-configurable RX and TX gain and baseband filter
  • software-controlled antenna port power (50 mA at 3.3 V)
  • SMA female antenna connector
  • SMA female clock input and output for synchronization
  • convenient buttons for programming
  • internal pin headers for expansion
  • Hi-Speed USB 2.0
  • USB-powered
  • open source hardware

Your HackRF One order will include an injection molded plastic enclosure and a micro USB cable. An antenna is not included, but consider ANT500 for general-purpose reception!

Additional Info

Additional Info

SKU 999008
UPC No

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Downloads
