Nooelec NESDR Nano 3: Tiny RTL-SDR USB Set w/ 0.5PPM TCXO, SMA Input, Aluminum Enclosure and Custom Heatsink

Nooelec NESDR Nano 3: The ultimate SDR for portable applications. Only 15 grams and 17mm x 8mm x 20mm!

Includes aluminum enclosure, TCXO, custom heatsink and SMA input.

Full 2 Year Warranty! Assembled in the USA.

SKU: 100746


Orders usually shipped in 1 business day!


Free shipping, always.
For orders over $100. Any order, anywhere.


Smile & relax.
30-day return policy on nearly everything in our store.

Share This



Say goodbye to blocked USB ports! The tiny NESDR Nano 3 is the ideal SDR for portable and embedded applications. Quad SDRs on a Raspberry Pi? USB OTG? Not a problem for the NESDR Nano 3! The Nano 3 is just 17mm x 8mm x 20mm weighs only 15g!

The Nano 3 is built into a high-quality brushed aluminum enclosure. In conjunction with the 2 internal silicone heat pads, this ensures that heat is removed from board-level and to the exterior where it belongs. The aluminum enclosure ensures that EMI is kept out out of the sensitive SDR circuitry, and emissions from the digital circuitry are contained within the SDR enclosure. The latter is especially important in EMI sensitive environments like automotive and flight applications!

An articulating, right-angle female SMA connector is included to allow you to attach both male SMA and male MCX antennas directly to your SDR.

The NESDR Nano 3 contains the same custom TCXO we include in our NESDR SMArt series. This 0.5PPM, ultra-low phase-noise TCXO is by far the highest performance TCXO available in ANY low-cost SDR.

We are so confident of the reliability and stability of this SDR that we offer a full 2-year warranty--the longest in the industry.

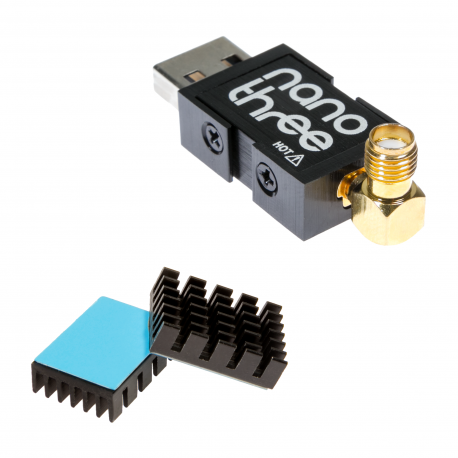

CAUTION: The enclosure will get hot! This is by design, and will not affect performance of the SDR. Please be cautious when touching the SDR after prolonged usage! A custom heatsink, which can optionally be affixed to either side of the SDR to further improve heat dissipation, is included with your purchase.

This RTL-SDR is based on the R820T2 tuner IC made by Rafael Micro, which means an approximate tuning range of 25MHz-1700MHz . There is also an RTL2832U IC on board to provide basic demodulation and USB interface functionality.

Full compatibility with a wide variety of popular SDR software packages, such as Matlab, CubicSDR, HDSDR, SDR Touch, Stratux, Planeplotter for Windows, Mac, Linux, Android & Raspberry Pi.

Additional Info

Additional Info

SKU 100746
USB Interface IC RTL2832U
Tuner IC R820T2
Frequency Range (approximate) 25MHz - 1750MHz
TCXO clock Yes
Antenna Connector Type MCX
Antenna Included? No
Remote Included? No
Additional Accessories Includes anodized aluminum enclosure, and articulating adapter for SMA antennas.


Mighty MiteReview by spRocket
A pair of these and RATLsnakes to go with them replaced a frustrating pair of no-name SDRs that I had been trying to use on a Raspberry Pi 3B+. The difference was immediately evident, with spot-on tuning and absolutely no drift. Since I'm mostly hunting UHF narrowband FM, accurate tuning is a must, and I was amazed when I was able to turn the PPM to zero. I'd say the performance is comparable to a couple of SMArt v4s I've run 24x7 for several years, which is to say superb.

Yes, they do get quite hot, even with the heat sinks attached. I was expecting it, and it's clearly not a problem after an all-day session. With a GPS hat, some heavy underclocking/no undervolting, and unnecessary LEDs turned off (I need Bluetooth and Wi-Fi), I can get about 13½ hours off a stout power bank.

If the heat is not a problem for you, they pack a lot of punch in a tiny package. (Posted on 1/15/2023)
dimensions incorrectReview by robert
Performance OK, but dimensions do not match spec. Should read 25 x 17 x 8 mm excluding USB connector (Posted on 6/24/2019)
