JYETech 'DSO Shell' Oscilloscope DIY Kit Bundle w/ 100MHz Probe & ESD-Safe Silicone Mat

Be the first to review this product

Simple DIY oscilloscope kit - includes everything you need to build your very own oscilloscope! Bundled with a 100MHz oscilloscope probe & a custom ESD-safe silicone mat for soldering.
SKU: 100750


Orders usually shipped in 1 business day!


Free shipping, always.
For orders over $100. Any order, anywhere.


Smile & relax.
30-day return policy on nearly everything in our store.

Share This

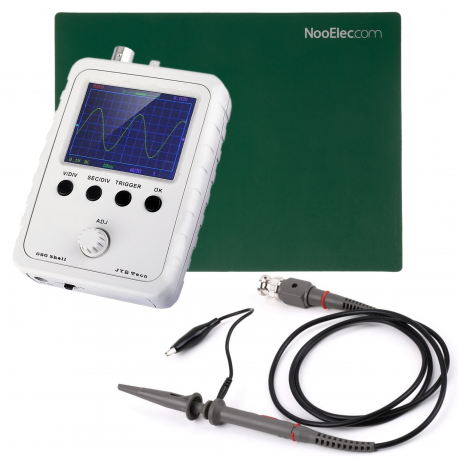

✔ Oscilloscope circuit boards and parts kit
✔ Oscilloscope enclosure
✔ 100MHz oscilloscope probe with 1x/10x feature
✔ Alligator clip oscilloscope probe
✔ ESD-safe, temperature-safe silicone soldering mat
✔ Printed assembly instructions, troubleshooting guide and schematic

Build your own functional oscilloscope for your bench. How cool is that??

DSO Shell (DSO 150) has similar bandwidth as the popular DSO 138 kit, but contains significant improvements to the structure, assembly, and operation.

One major difference is the DSO Shell comes with a full molded plastic enclosure. The panels are flexible for easy user installation and modification. A rotary encoder has also been added to make parameter adjustment quick and painless.

The color LCD display and microcontroller are now mounted on the same board (mainboard) to avoid using inter-board pin-headers. The analog channel is on a separate daughterboard PCB to provide better separation between the analog and digital portions of the design. Without the analog daughterboard the mainboard is actually a general purpose control board that can be used in many other applications. Aside from a few through-hole components, the mainboard is fully assembled. It is also factory-tested before shipment to ensure your kit will function as expected.

IMPORTANT: 9V DC input power is required. DO NOT EXCEED 10V! If using a wall wart, test the actual output before powering your scope. It WILL permanently damage your scope to use higher voltages!

DSO Shell Features:
✔ Analog bandwidth: 0 - 200kHz
✔ Sampling rate: 1Msps max
✔ Sensitivity: 5mV/Div - 20V/Div
✔ Vertical resolution: 12-bit
✔ Timebase: 10us/Div - 500s/Div
✔ Record length: 1024 points
✔ Built-in 1kHz/3.3V test signal
✔ Hold, save, recall functions
