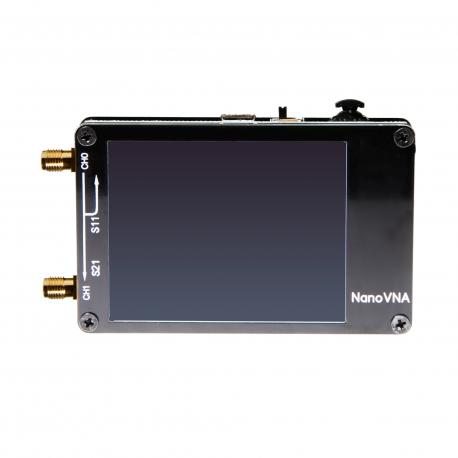

NanoVNA - 50kHz-900MHz+ Portable Vector Network Analyzer & SOLT Calibration Kit

Be the first to review this product

NanoVNA is an open-hardware vector network analyzer designed by ttrftech (GitHub).

Includes EMI-shielded NanoVNA with SOLT SMA calibration kit, 2 testing cables, USB-C charging cable and carrying case.

6 month warranty directly through Nooelec. Fantastic value!

SKU: 100830
US$74.95
US$74.95


star

Orders usually shipped in 1 business day!
Read more...

star

Free shipping, always.
For orders over $50. Any order, anywhere.

star

Smile & relax.
30-day return policy on nearly everything in our store.

Share This



Description

Details

NanoVNA is an open-hardware vector network analyzer designed by ttrftech (GitHub) which will allow you to test most of your RF equipment with ease. A portion of all proceeds of this VNA is paid to the ttrftech team to continue and further NanoVNA development. The RF sections are EMI shielded to reduce potential interference and improve instrument accuracy.

NanoVNA includes a 2.8" TFT touch screen, with a simple interface that allows for measuring S-parameters (S11 and S21). SWR, phase and smith chart capability.

At just 85mm x 54mm, with PCB case protection & a 400mA battery, NanoVNA is ideal for portable measurements and operation.

Measurement capability of at least 50kHz-900MHz--and beyond with appropriate custom firmware (note that specifications may be lower outside of the intended frequencies of operation). Frequency accuracy is 0.5PPM or better, RF output power is -13dBm and SWR < 1.1.

NanoVNA can also communicate with your PC via USB-C (serial mode). USB cable is included.

Included:

  • NanoVNA with EMI shielding & 400mA battery
  • 3pc SMA calibration kit
  • 2pc RG174 cable, 30cm
  • USB-C data cable, 30cm
  • Plastic case

Additional Info

Additional Info

SKU 100830
UPC 0616469146717
