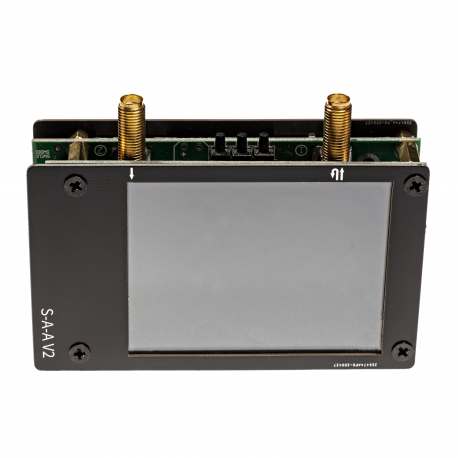

NanoVNA v2 S-A-A-2: 50kHz-3000MHz+ Portable Vector Network Analyzer w/ 2.8" LCD Screen & SOLT Calibration Kit

Be the first to review this product


  • A small, portable, battery powered vector network analyzer with a wide frequency range from 50kHz to 3GHz

  • Able to measure S11 reflection coefficient and S21 transmission coefficient

  • A beautiful 3" inch, 320*240 display with 1950mAh rechargeable lithium-ion battery

  • System dynamic range when calibrated is 70dB from 50kHz to 1.5GHz and 60dB from 1.5GHz to 3GHz

  • Minimum return loss is 20dB at 1.5GHz and 13dB at 3GHz

  • 1024 sweep points with USB mode along with NanoVNA-QT software and 201 points when data is displayed on the screen

  • A SOLT calibration kit is included in the package along with 2 male to male SMA RF coaxial cables

  • A MicroUSB cable for charging and computer connection is included in the package

SKU: 100832
US$119.95
US$119.95


star

Orders usually shipped in 1 business day!
Read more...

star

Free shipping, always.
For orders over $100. Any order, anywhere.

star

Smile & relax.
30-day return policy on nearly everything in our store.

Share This



Description

Details

The original NanoVNA v2, model: S-A-A-2, is used for measuring and characterizing RF components such as antennas, amplifiers, filters, attenuators, etc. It comes with stable firmware and the ability to connect to personal computers as well as charge via the included Micro-USB cable.

The kit also comes with a short, open, load, and through (SOLT) calibration kit with 2 RF cables, each with a length of 30cm. Can measure the reflection and transmission coefficients (S11 and S21) with 1024 sweep points using USB mode and NanoVNA-QT software, and 201 points when data is displayed on-screen.

Additional Info

Additional Info

SKU 100832
UPC 0616469146731
