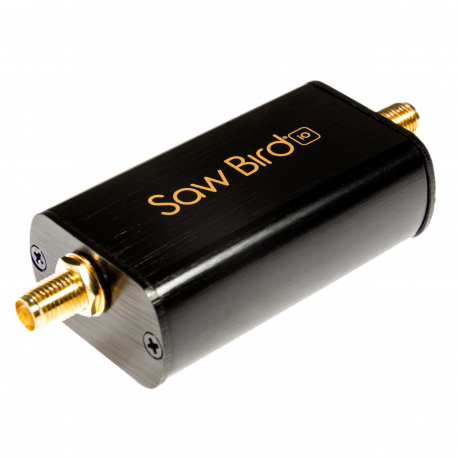

A high-quality, high-performance, complete LNA & SAW filter module for Inmarsat at a very affordable price.
The module should be powered via low-noise bias-tee which supplies between 3.0V-5.5V. The bias tee must be capable of supplying a minimum of 35mA of current.
As with all other high-frequency applications, we recommend using in conjunction with an SDR specifically designed for long-term, high-frequency performance without degradation, such as the NESDR SMArTee XTR. or a HackRF.
The center frequency of the module is 1.542GHz with approximately 80MHz of bandwidth (-6dB rolloff). As such, it should be used for reception of frequencies between 1.50GHz-1.58GHz.
The LNA is a dual-stage design with a very low noise figure of 1dB (nominal).
4 mounting holes are available on the PCB for various mounting options. The input and output connectors are female SMA.
Additional Info
Additional Info
| SKU | 100782 |
|---|---|
| UPC | No |
