HackRF Pro: Configurable Bundle

HackRF Pro is currently available for preorder. Production will begin in July 2025 and shipments will begin to take place in September 2025.

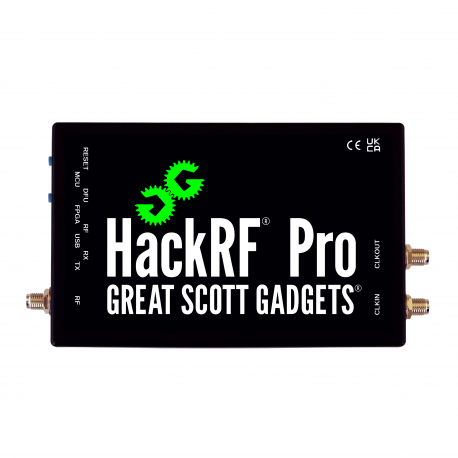

HackRF Pro from Great Scott Gadgets is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 100 kHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF Pro is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

HackRF Pro is compatible with existing add-ons, including Opera Cake from Great Scott Gadgets, most PortaPacks, and some enclosures from third party providers. It has an injection molded plastic enclosure. USB cable and antenna are not included. ANT500 is recommended as a starter antenna for HackRF Pro.

HackRF Pro was designed for backward compatibility, and follows the same basic architecture of HackRF One but with many small enhancements. Software that works with HackRF One is already compatible with HackRF Pro. Out-of-the-box HackRF Pro will behave like HackRF One with superior performance. For details regarding software compatibility and firmware, please review the migration guide.

Features:

• 100 kHz to 6 GHz operating frequency
• tunable from 0 Hz to 7.1 GHz
• half-duplex transceiver
• up to 20 million samples per second
• 8-bit quadrature samples (8-bit I and 8-bit Q)
• compatible with GNU Radio, SDR#, and more
• software-configurable RX and TX gain and baseband filter
• software-controlled antenna port power (50 mA at 3.3 V)
• SMA female antenna connector
• SMA female clock input and output for synchronization
• convenient buttons for programming
• internal pin headers for expansion
• Hi-Speed USB 2.0 w/ type-C connector
• USB-powered
• open source hardware

Compared to HackRF One, HackRF Pro introduces a host of new and updated features, including:

• Wider operating frequency range
• Improved RF performance with flatter frequency response
• Modern USB Type-C connector
• Built-in TCXO crystal oscillator for superior timing stability
• Logic upgrade from a CPLD to a power-efficient FPGA
• Elimination of the DC spike
• Extended precision mode with 16-bit samples for low sample rates (typical ENOB: 9-11)
• More RAM and flash memory for custom firmware
• Installed shielding around the radio section
• Trigger input and output accessible through clock connectors
• Cutout in the PCB provides space for future add-ons
• Improved power management
