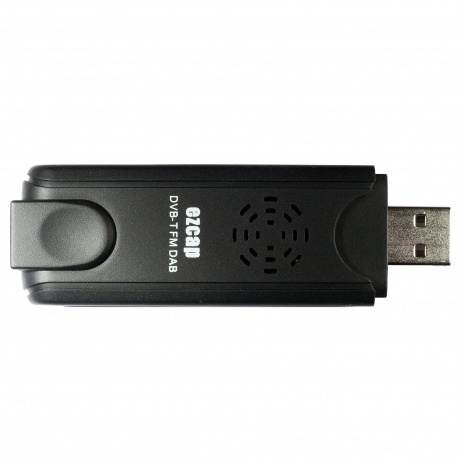

These DVB-T dongles have new-found popularity since it was discovered they can be used as very inexpensive software defined radios (SDR). North American standard is ATSC, not DVB-T, so this will not work in North America for OTA video reception. However, this can be used anywhere for SDR, including in North America, and of course can also be used for DVB-T reception where available.
Since these contain an Fiticomm FC0013 tuner IC they have a tunable range of about 22-1100MHz. They have BAV99 (labelled A7t) for ESD protection on the antenna input, so there is less need to worry about burning out your tuner than with other cut-rate devices.
The connector type on the antenna and USB board is PAL TV aerial (IEC-169-2)
Additional Info
Additional Info
| SKU | 100548 |
|---|---|
| UPC | No |
| USB Interface IC | RTL2832U |
| Tuner IC | FC0013 |
| Frequency Range (approximate) | 22MHz - 1100MHz |
| TCXO clock | No |
| Antenna Connector Type | IEC-169-2 |
| Antenna Included? | Yes |
| Remote Included? | Yes |
| Additional Accessories | No |
Reviews
- Great for SDR but not 1090 mhz a/c trackingReview by Doug
-
If you are most interested in 1090 mhz go with the NooElec (R820T) which does a fantastic job for a/c tracking. Although Ezcap tunes the frequency it has very poor sensitivity for 1090 mhz when compared side by side with essentially the same set up, in my case all but unusable for a/c, ok for udr. (Posted on 12/21/2013)Performance Value Quality
Downloads
Product Downloads
Manual
Software
(Size: 20.5 MB)
NESDR-compatible SDR software for 64-bit Windows.
You must install the NESDR driver before successfully operating this software.
(Size: 19.2 MB)
NESDR-compatible SDR software for 32-bit Windows.
You must install the NESDR driver before successfully operating this software.
Drivers
(Size: 4.9 MB)
Latest version of Zadig, used to install the SDR driver for your NESDR.
Required to use RTL-SDR compatible SDR software on Windows operating systems.
