Ham It Up - 125MHz 0.5PPM TCXO Upgrade Module

Be the first to review this product

A custom 125MHz TCXO upgrade module for all 125MHz versions of the Ham It Up upconverter.

NOTE: Simple soldering tools and skills required for installation!

SKU: 100756
US$9.95
US$9.95
star

Orders usually shipped in 1 business day!
Read more...

star

Free shipping, always.
For orders over $50. Any order, anywhere.

star

Smile & relax.
30-day return policy on nearly everything in our store.

Share This



Description

Details

This module can be used in place of the existing oscillator of our Ham It Up upconverter for greatly increased tuning accuracy.

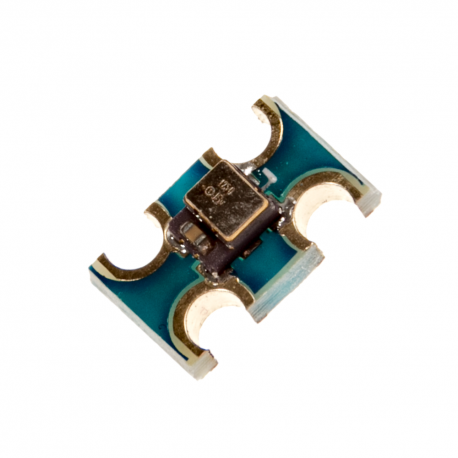

The TCXO is a custom 0.5PPM part made for us by our crystal partner in Taiwan. It has fantastic short-term and long-term stability and ultra-low phase noise. It is pre-soldered onto a carrier board to easily fit the dimensions of the existing clock on the Ham It Up.

To install, remove the crystal X1 from the PCB and install the module. Pin 1 is denoted in the product images. Line up pin 1 to the 'dot' near X1 on the PCB and solder.

Of course, this module can also be used in any application or project where a 125MHz TCXO is desired.

Additional Info

Additional Info

SKU 100756
