AD9850 40MHz DDS Function Generator Module

Be the first to review this product

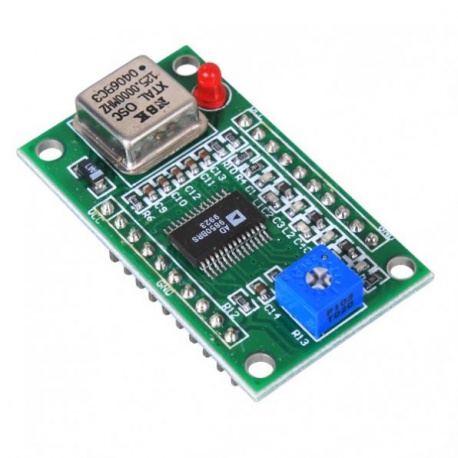

AD9850 Function Generator Module
SKU: 100292
US$13.95
  • Buy 2 for US$13.50 each and save 4%
  • Buy 4 for US$12.95 each and save 8%
  • Buy 10 for US$11.95 each and save 15%
US$13.95
star

Orders usually shipped in 1 business day!
Read more...

star

Free shipping, always.
For orders over $50. Any order, anywhere.

star

Smile & relax.
30-day return policy on nearly everything in our store.

Share This



Description

Details

A low-cost DDS module capable of generating waveforms up to about 40MHz.  Powered by the ubiquitous AD9850, so it will be easy to find code you will be able to adapt to your own project.

The important pins are broken out to 0.1"-centered headers for simple breadboard usage and project integration.  The pinout of the module is detailed below.  For more information regarding pin functionality please consult the datasheet linked to above.

Top Row
# Name Description
1 VCC Supply Voltage
2 D0 Parallel Data Interface
3 D1 Parallel Data Interface
4 D2 Parallel Data Interface
5 D3 Parallel Data Interface
6 D4 Parallel Data Interface
7 D5 Parallel Data Interface
8 D6 Parallel Data Interface
9 D7 Parallel Data Interface
10 GND Ground Pin
Bottom Row
# Name Description
1 VCC Supply Voltage
2 W_CLK Word Load Clock
3 FQ_UD Frequency Update
4 DATA Serial Data Pin
5 RESET Reset Pin
6 GND Ground Pin
7 QOUT Output
8 QOUTB Comp. Out
9 IOUTB Comp. Analog Out
10 IOUT Analog Current Out
